Infinity Classic

Design your garage door quote

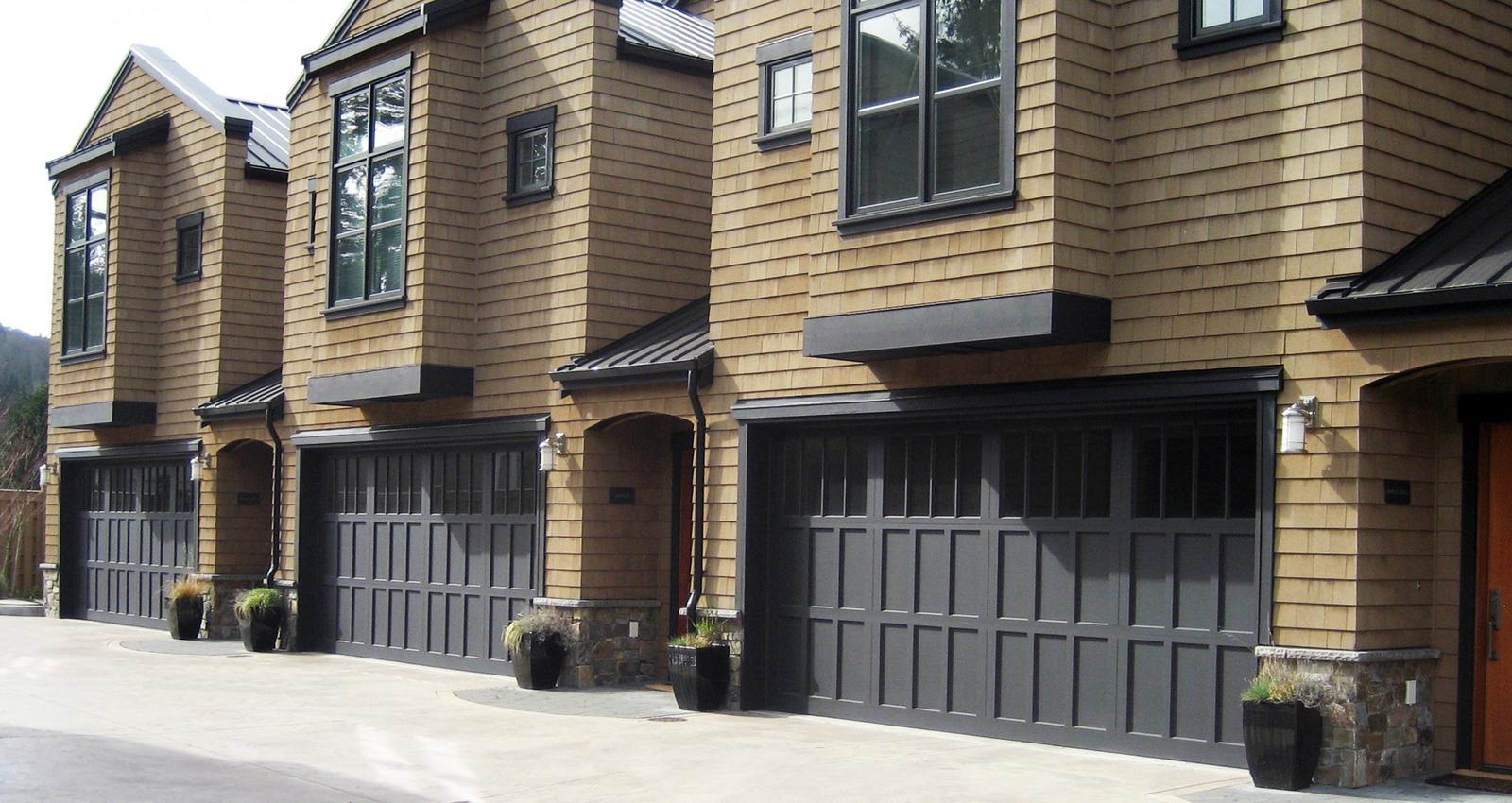

GarageDoorDesign.com has combined the elegance of a wooden carriage house style door with the latest manufacturing technology to create the new all-aluminum Infinity Classic™. Infinity Classic’s weather resistant durability is unsurpassed and with proper maintenance will virtually last the life of your home with "Everlasting Elegance". Infinity Classic's wood grain powder coated finishes look so lifelike you can’t believe they’re not real wood.

*You must select a design and color option in order to view your door.

General Information

  • Frame: 2" thick extruded aluminum 6063-T5
  • Finish: Standard, Class II clear Anodized
  • Section Joint: Tongue and Groove Joints with compressible foam gasket between sections
  • Top & Bottom Rail widths: 5-7/8" (5-1/2" on flat), Meeting Rail width combined: 4-3/16" (3-1/2" on flat)
  • End Stile width: 5-7/8" (5-1/2" on flat), Center Stile width: 3-1/4" (2-1/2" on flat)
  • Bottom weather seal: U-shape loop type vinyl
  • Limited Lifetime Warranty
    • Download Warranty HERE
    • Download Finishing Instructions HERE

Standard Widths

8'-0", 9'-0", 10'-0", 12'-0",16'-0", 18'-0"

Standard Heights

7'-0", 8'-0", 9'-0", 10'-0", 12'-0"

Hardware

15" or 12" radius torsion hardware; track is 2" bracket mounted. 3" track supplied when required by weight. Quiet long life white nylon rollers, non corrosive door fixtures and graduated hinges are standard. U-shaped galvanized struts are supplied with every double car door and as required by weight to keep the door rigid.
