Heritage Classic C-Series

Design your garage door quote

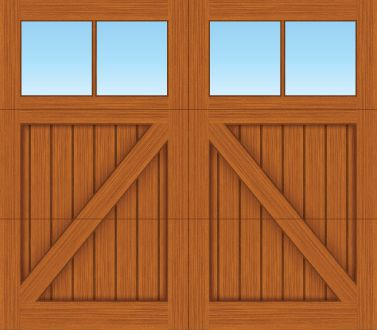

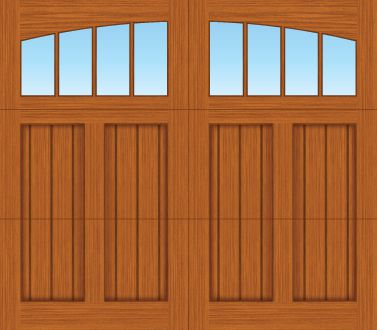

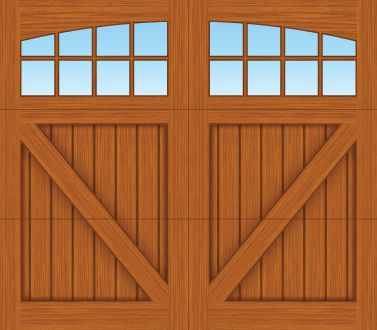

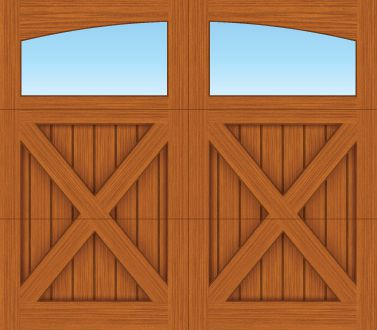

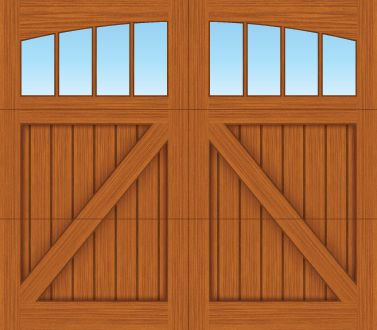

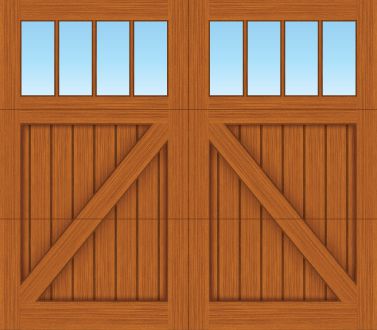

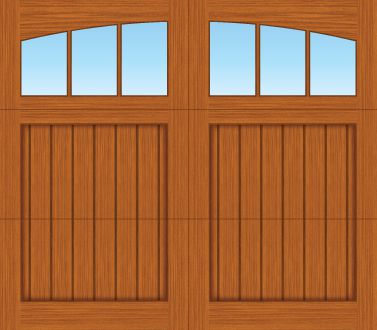

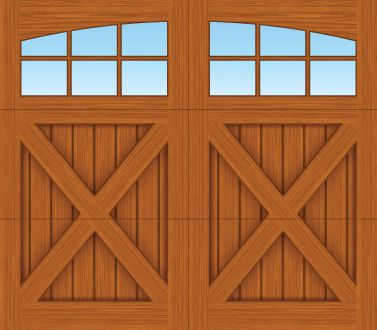

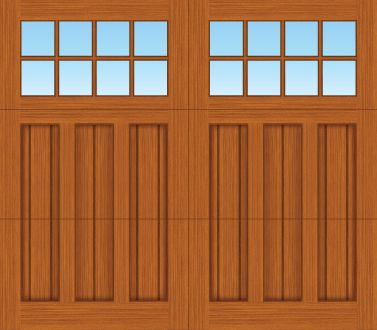

Heritage Classic™ C-Series is one GarageDoorDesign.com finest handcrafted wood carriage house style garage doors. The C-Series has an additional layer of T&G wood on the door face of the E-Series doors. The 1×4, 1×6 or 1×8 T&G wood can run vertically, horizontally, diagonally or in a herringbone configuration to your specifications. Skilled artisans can replicate most any design that you or your architect can create. Choose from select woods like Cedar, Tight Knot Cedar, Redwood, Knotty Alder, VG Fir, Meranti and other fine woods.

*You must select a design and color option in order to view your door.

GENERAL INFORMATION

  • Frame thickness: 1-1/8", Face material thickness: 1/4", Overlay thickness: 3/4",
  • Overall door thickness: 2.875"
  • End Stiles: 5-1/2", Center Stiles: 10
  • Bottom Rail: 7-1/2", Top Rail: 5-1/2", Meeting Rail width combined: 5"
  • Arches: Standard radius for doors up to 10' wide door are 15'-0" radius, those over 10' wide are a single 58'-0" radius or two 15'-0" radius arches (double arches)
  • Calculated insulation rating through section, R Value=6.18
    * R values are calculated specifically for the colder climates and offer the best long term insulating value.
  • Finish: Face sanded ready for finishing
  • 1 Year Limited Warranty
    • Download Warranty HERE
    • Download Wood Door Finishing Instructions HERE

STANDARD WIDTHS

8'-0", 9'-0", 16'-0", 18'-0"

STANDARD HEIGHTS

7'-0", 8'-0", 9'-0", 10'-0", 11'-0", 12'-0", 14'-0", For ease of operation do not exceed 28"

C-SERIES

Nominal 1/4" Plywood with Nominal 3/4" thick T&G Siding Face applied, Nominal 3/4" thick Overlay Design

HARDWARE

The Heritage is equipped with heavy duty 15" radius torsion hardware; track is 2", verticals are angle mounted, horizontal track has continuous reinforcing angle. 3" track supplied when required by weight. Long stem 10 ball bearing rollers with nylon races, non corrosive door fixtures and graduated 14 Ga. double end hinges are standard. All doors include one strut per section, 2-1/4" or 3" depending door width and weight.

Before

After

Before

After
